Weight Distribution Systems

Did You Know?

Towing without a Hayman Reese Weight Distribution Systems can cause unnerving trailer sway, reduced steering and braking responsiveness, less traction and misaligned head lamps. Overtime you may also notice a reduction in fuel economy and in increased tyre wear.

When using a Weight Distribution System, the ball weight remains the same, however the load is evenly distributed through the vehicle's chassis to all four wheels. It is important that the capacity of the Weight Distribution System  is correctly chosen and that the vehicle manufacturer's recommendations are always followed.

Classic and Standard systems

Hayman Reese 600lb & 800lb Weight Distribution Systems come in a Classic and Standard style.

The Classic can be described as the Hayman Reese signature kit. The system is comprised of our proven traditional welded head, trunnion style high performance bars with integrated cams, and with light weight extra durable cast steel shanks.

The Standard kit is comprised of round, hook style high performance spring bars with integrated cams. Round spring bars allow for more clearance for trailers with 6” chassis. The system shares the same shank as the Classic kit and also has a light weight cast steel head.

Understanding your trailer ball weight is the starting point for know which Weight Distribution System you need. Use the table below as a guide.

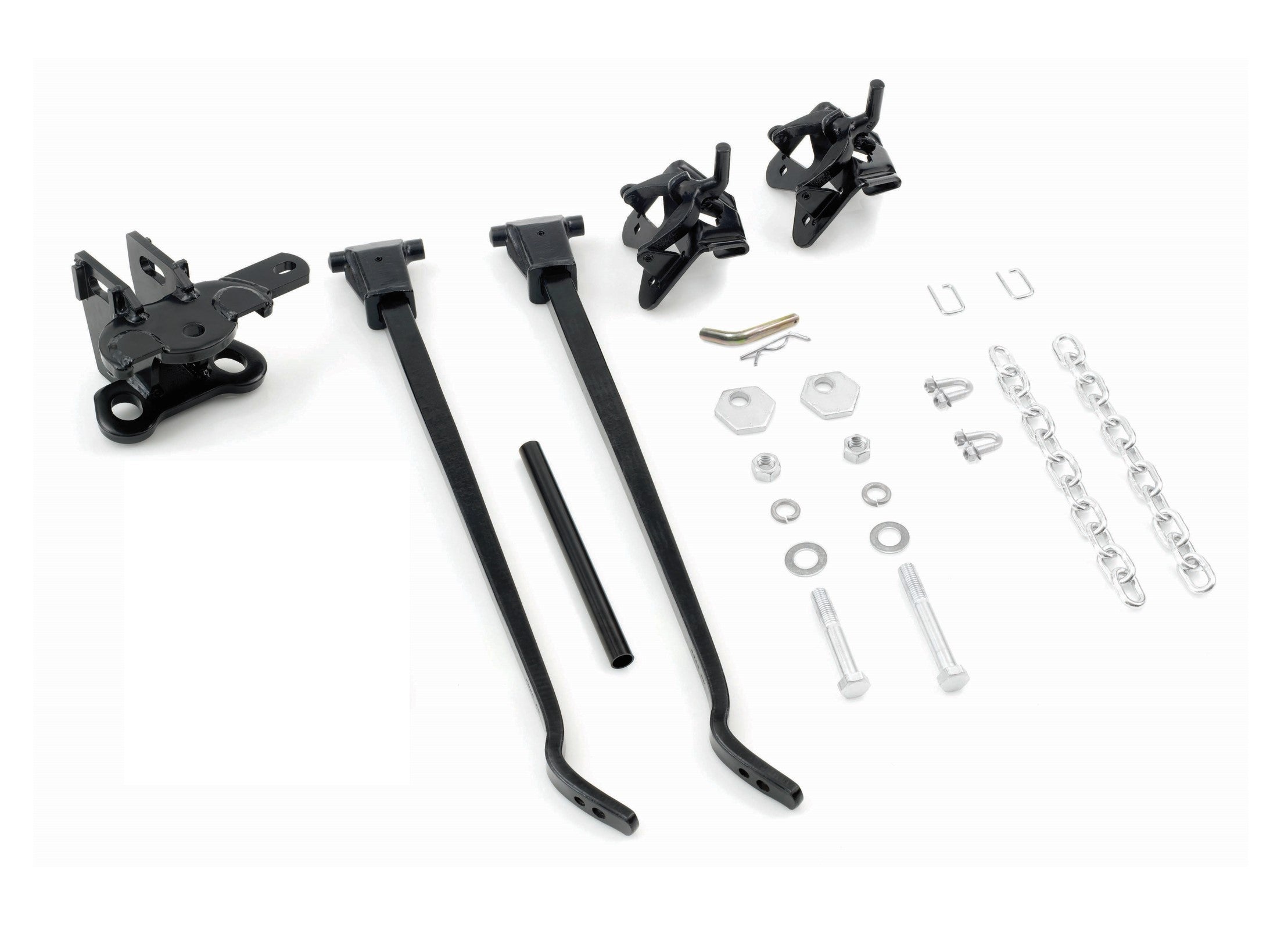

Mini

The two bar (2 x 19mm) Mini system is designed to be used with any Hayman Reese towbar and uses chains to hold the hitches spring bars in position. The system is easily setup and removed, and is ideal for trailers with a ball weight up to 80kg.

Part Number: 04180                                                 RRP: $186.16

intermediate

The intermediate system is a very similar in design to the Mini, however it uses a four bar ( 4 x 19mm) system. This system has a working range between 80kg and 135kg ball weight and is ideal for small sized caravans.

Part Number: 04194                                                RRP: $290.16

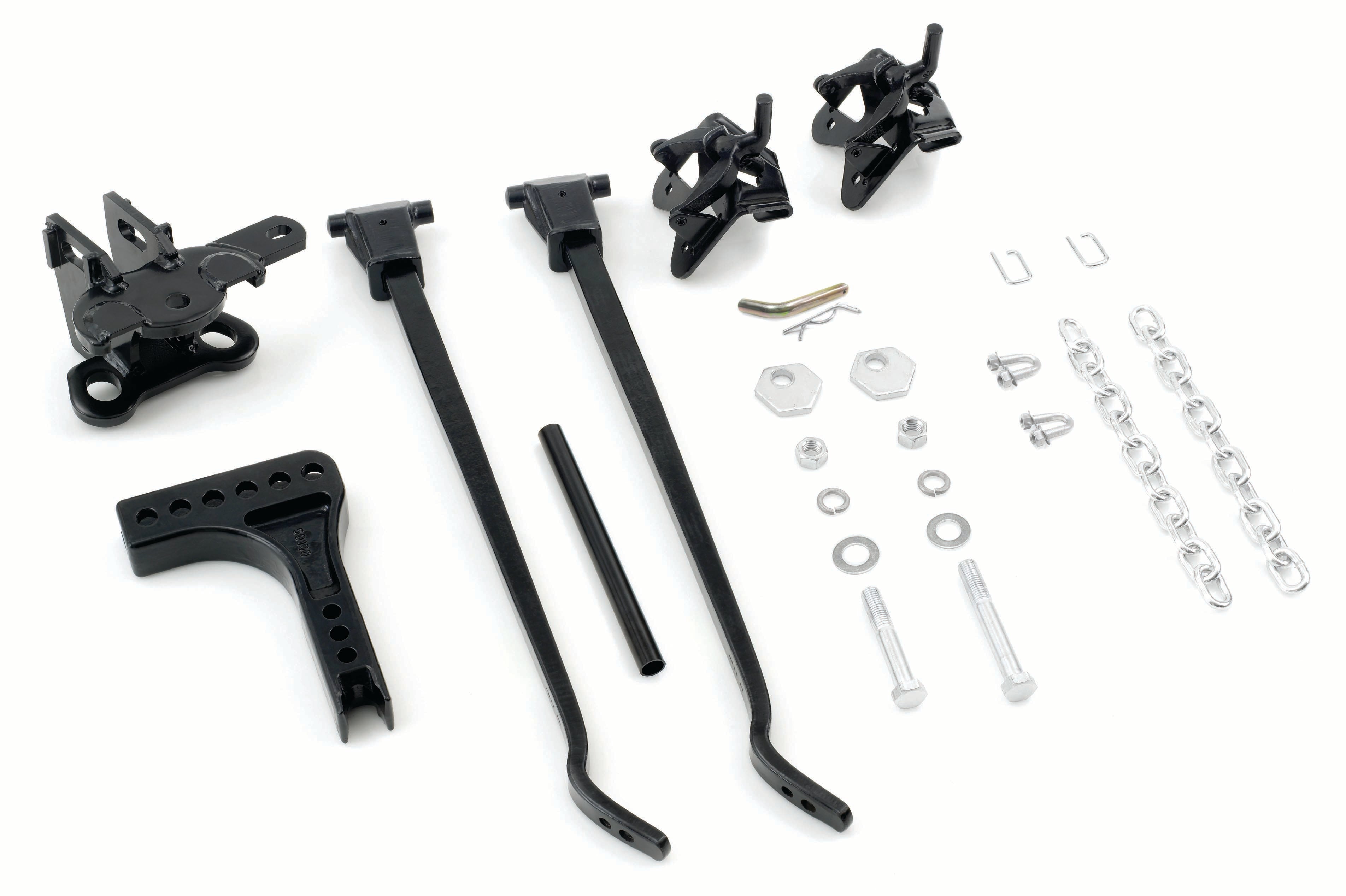

600lb Kit

Hayman Reese's famous 600lb kit is a 600lb/275kg rated system and is by far the most popular towing aid in Australia. This kit suits trailers that have a ball weight between 135kg and 275kg.

Classic Series (28" Spring Bars)                               Part Number: 76002F                                              RRP: $862.16

Classic Series (30" Spring Bars)                               Part Number: 76003F                                              RRP: $872.56

Standard Series (30" Spring Bars)                          Part Number: 76003                                                 RRP: $810.16

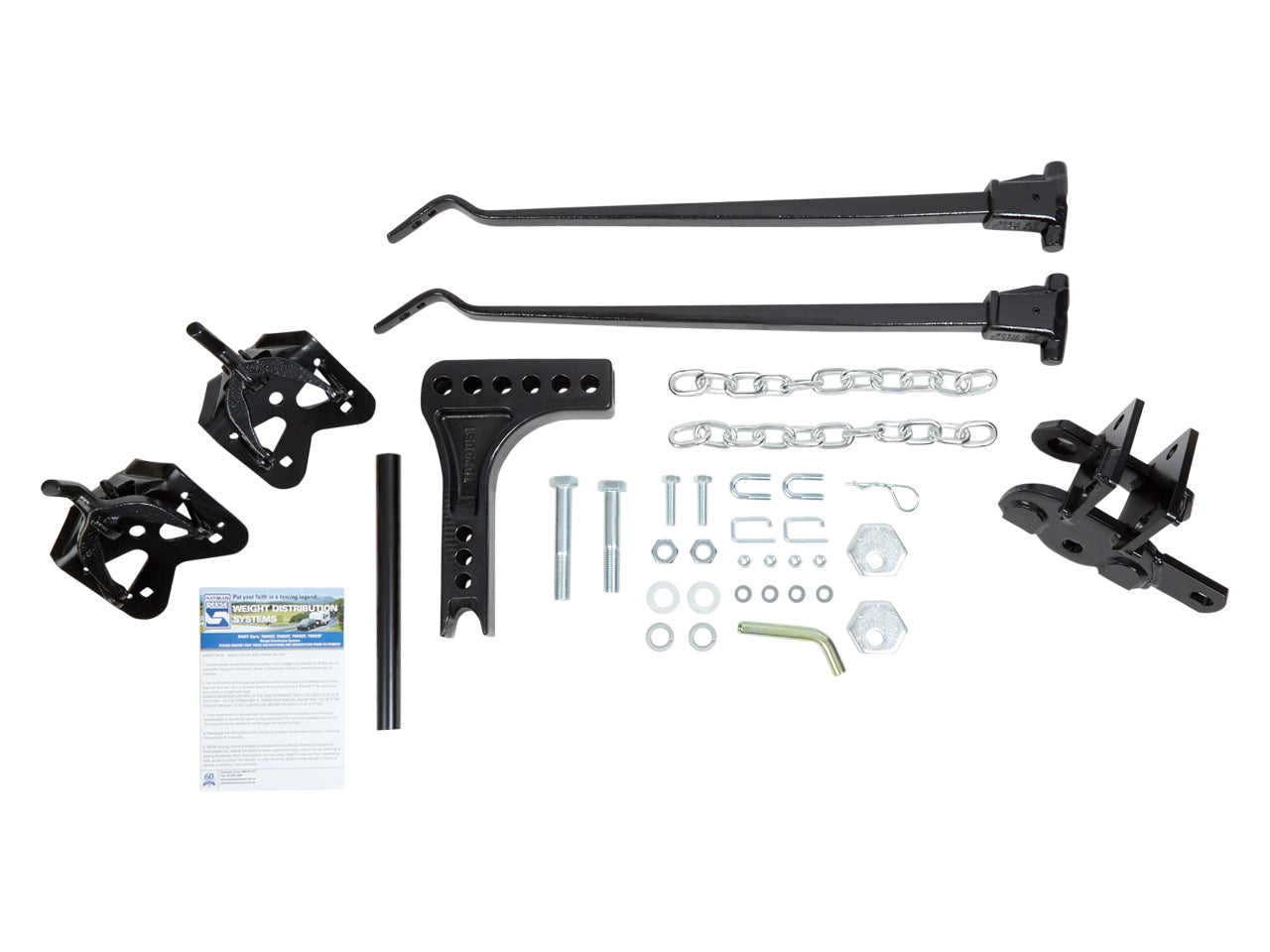

800lb Kit

The 800lb kit relies on heavier gauge spring bars than the 600lb to handle heavier trailers. As the name implies, the 800lb kit is designed to work with trailers that have a ball weight between 275kg and 365kg.

Classic Series (28" Spring Bars)                               Part Number: 78002F                                              RRP: $903.76

Classic Series (30" Spring Bars)                               Part Number: 78003F                                              RRP: $914.16

Standard Series (30" Spring Bars)                          Part Number: 78003                                                 RRP: $830.96

1200lb Kit

For extra heavy duty applications, the 1200lb kit has a working range between 365kg and 545kg ball weight. For towing loads in excess of 3,500kg, a 70mm towball is required.

Part Number: 712003                                              RRP: $914.16
